Re: [stella] The heart of darkness.

Subject: Re: [stella] The heart of darkness.
From: "John Saeger" <john@xxxxxxxxxxx>
Date: Mon, 19 Nov 2001 09:49:12 -0800

----- Original Message -----
From: "Chris Wilkson" <ecwilkso@xxxxxxx>

> The circuit is actually pretty simple...it's a gray code counter.  It
> generates a 2 phase, non-overlapping clock.  At the frequency of the 6502.
> The 2 phase clock is generated by the 2 crosscoupled flipflops.  The
graycode
> is generated by the 2 NOR gates.

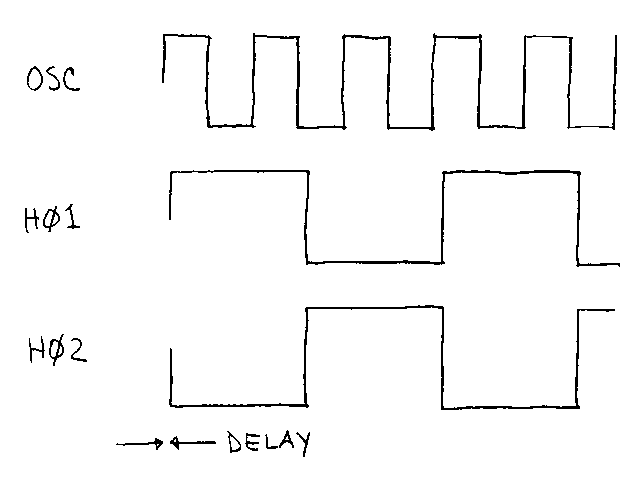

So do the clocks look like this?  And how large would you suppose the delay
is?

Thanks,

John

Attachment: CLOCKSIG.GIF
Description: GIF image
